Chain Link Fence
Products List
Chain Link Fence

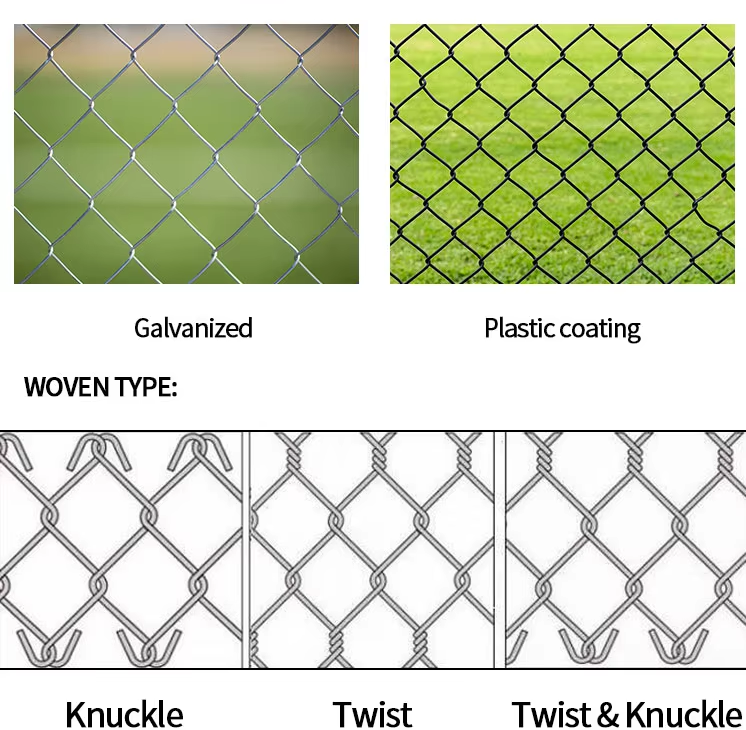

Chain link fence is one of the most popular types fence for both residential and commercial fencing projects. The fence consists of steel tubing used as a top rail connecting to steel posts on the side. This is called the frame or framework of the fence and is held together by rail clamps and topped with post caps. Inside the fence frame, a wire mesh made of individual metal strands woven together to create the diamond pattern, sometimes called the fabric, is hung and stretched between the two end posts.

Fence Height:

5ft, 6ft, 8ft, etc. (1.5m, 1.8m, 2.0m, 2.4m, etc.)

Fence Length:

9m, 12m, 15m, 20m, 30m

Wire Thickness:

2.5mm, 3.0mm, 3.15mm, 3.5mm, 4.0mm

Opening size:

25x25mm, 50x50mm, 75x75mm, 80x80mm

Flat Bar:

25.0mm*5.0mm

Fence Post:

Round Post (dia. 48mm, 60mm, 75mm)

Clamps:

Metal Clamps

Post Cap:

Metal Rain Cap / Anti-UV PP Cap

Surface treatment:

Pre-Hot Dipped Galvanized (100, 200, 250, 280g/m²)
 PVC Coated (All colors are in Ral)

Material:

low-carbon steel wire, galvanized steel wire

Surface Finish:

galvanized, PVC coated or PE powder coated

Color:

green and black. Other colors also available on request.

Chain Link Mesh

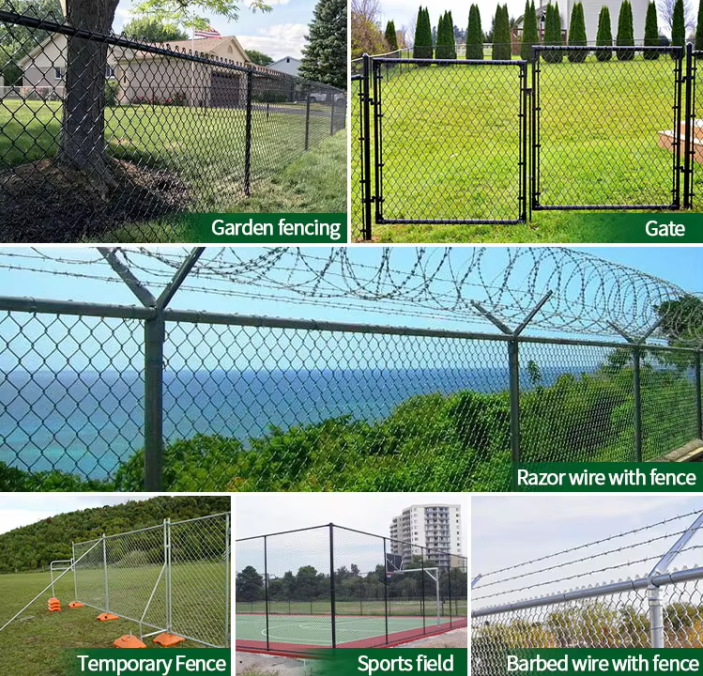

Chain Link Fence Application
